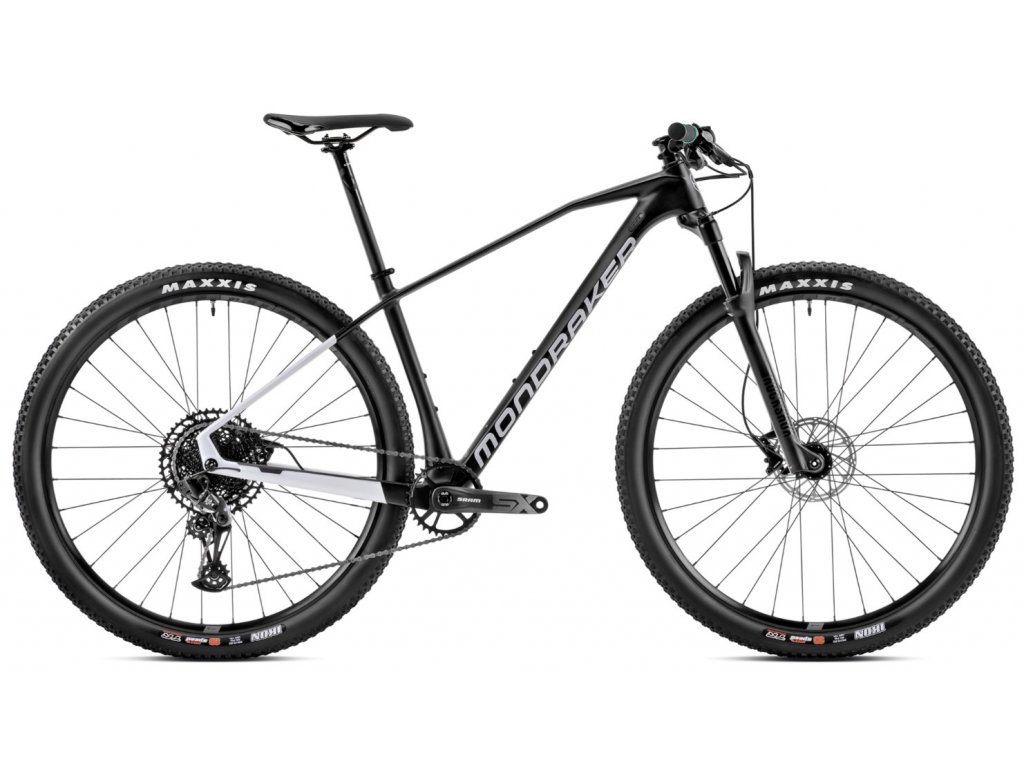

MONDRAKER CHRONO CARBON 2023 - CARBON/DIRTY WHITE
Kód: 3MD010.23025-L 3MD010.23025-XL Zvolte variantuDetailní popis produktu
MONDRAKER CHRONO CARBON 2023 - CARBON/DIRTY WHITE
Technické parametry
vyráběné velikosti
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
rám
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design
vidlice
RockShox Judy Gold RL 29, 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload, RockShox OneLoc
RockShox Judy Gold RL 29, 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload, RockShox OneLoc
hlavové složení
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
přehazovačka
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
řazení
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram Level, tooled reach adjust, lever pivot bushings
Sram Level, tooled reach adjust, lever pivot bushings
kliky
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
středové složení
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
řidítka
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
představec
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm
sedlovka
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
sedlo
Mondraker XC Series, steel rail
Mondraker XC Series, steel rail
náboj přední
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
náboj zadní
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
řetěz
Sram SX Eagle, 12s, Powerlock
Sram SX Eagle, 12s, Powerlock
kazeta
Sram XG-1230, 11-50T, 12s
Sram XG-1230, 11-50T, 12s
dráty
CN round stainless steel
CN round stainless steel
ráfky
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
pláště
Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead
Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead
obj.c.
010.23025
010.23025
gripy
Onoff Twin, 1lock-on, 135mm
Onoff Twin, 1lock-on, 135mm
přední brzda
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
zadní brzda
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
převodník
34T, steel, X-Sync 2
34T, steel, X-Sync 2
patka k přehazovačce
Mondraker M068
Mondraker M068
Geometrie
Doplňkové parametry
| Kategorie: | Horská kola |
|---|---|
| Barva rámu: | Bílá, Černá |
| Modelový rok: | 22/23 |
| Odpružení: | Přední vidlice (Hardtail) |
| Určení: | Unisex, Pánské |
| #tabulka-velikosti#: | https://www.skiandbike.cz/tabulka-velikosti-mondraker-chrono/ |
